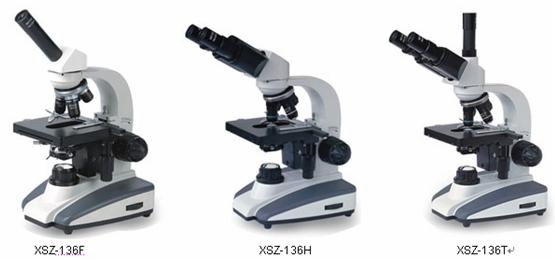

Biological Microscope XSZ-136F/H/T

Select All

Item Code:XSZ-136F/H/T Features:This series microscope is developed for various applied scopes. From daily work to scientific research, it is widely used in Biology, Histology, Pathology, Medicament chemistry research and Clinical examination. It is also used for education Colleges and Schools.

<< Prev Back Next >>

Description

Specification				Model
				XSZ-136F	XSZ-136H	XSZ-136T
Viewing head	Monocular Head.Inclined at 45 °			●
	Compensation Free Binocular Head. Inclined at 3 0 ° ( 55mm -75mm )				●
	Compensation Free Trinocular Head. Inclined at 3 0 ° ( 55mm -75mm ) )					●
Eyepiece	WF10 ×			●	●	●
Objective	Achromatic objective: 4 × ,10 × ,40 × (S),100 × (S)Oil			●	●	●
Stage	Double layers mechanical stage			●	●	●
	Stage size: 140mm × 140mm			●	●	●
	Moving range: 75mm × 50mm			●	●	●
Condenser	N.A1.25 Abbe condenser with iris diaphragm&filter			●	●	●
Focusing	Coaxial coarse & fine focusing adjustment with rack and pinion mechanism Fine focusing scale Value 0.002mm			●	●	●
Collector	High brightness collector and can be interconverted with Kohler illumination			●	●	●
Light source	Halogen tungsten bulb 6V/30W.AC 85V-230V			●	●	●
	Adjustable brightness
Optional Accessory	Eyepieces:	WF16x,WF20x,P16x 1.3 Mega pixels CMOS electronic eyepiece
	Semi-plan objectives:	4X,10X,20X(S),40(S),60X(S), 100(S)Oil	Photo and CDD attachment

Mark” ● ”standard outfit. Mark:” ○ ”optional parts.
